CPU IHS: Integrated Heat Spreader & Why Lapping Flat Matters

The phrase what is cpu ihs integrated heat spreader lap flat sounds like jargon, but it points to a real cooling issue. The IHS is the metal lid on top of a desktop CPU. Lapping it flat means carefully abrading that lid so the cooler makes even contact.

Modern desktop chips can push high package power, and uneven contact can create hot spots. In our research, the biggest visual clue is patchy thermal paste after the cooler is removed. That pattern often matters more than a shiny finish.

The next step is knowing what the lid actually does.

Quick Answer

what is cpu ihs integrated heat spreader lap flat? It means flattening the CPU lid. The lid sits over the silicon die.

A flatter lid contacts cooler better. Better contact can lower temperatures. It is not cosmetic polishing.

What Is a CPU IHS and What Does “Lap Flat” Mean?

The Integrated Heat Spreader (IHS) is a metal lid that spreads heat from the CPU die to the cooler. On most desktop CPUs, it is the shiny square under the cooler. It protects the fragile silicon die and gives the cooler a safe contact surface.

The IHS is not the CPU die. The die is the small silicon rectangle underneath it. The die generates heat.

The lid spreads that heat over a larger area.

As of 2026, desktop CPUs from Intel and Advanced Micro Devices (AMD) still use this lid design. Thin silicon can crack under mounting pressure. The IHS is usually nickel-plated copper.

Copper conducts heat well, while nickel plating resists corrosion.

“Lap flat” means using fine abrasive sheets on a known-flat surface to remove high spots. The goal is better contact with the cooler base. It is not mainly cosmetic.

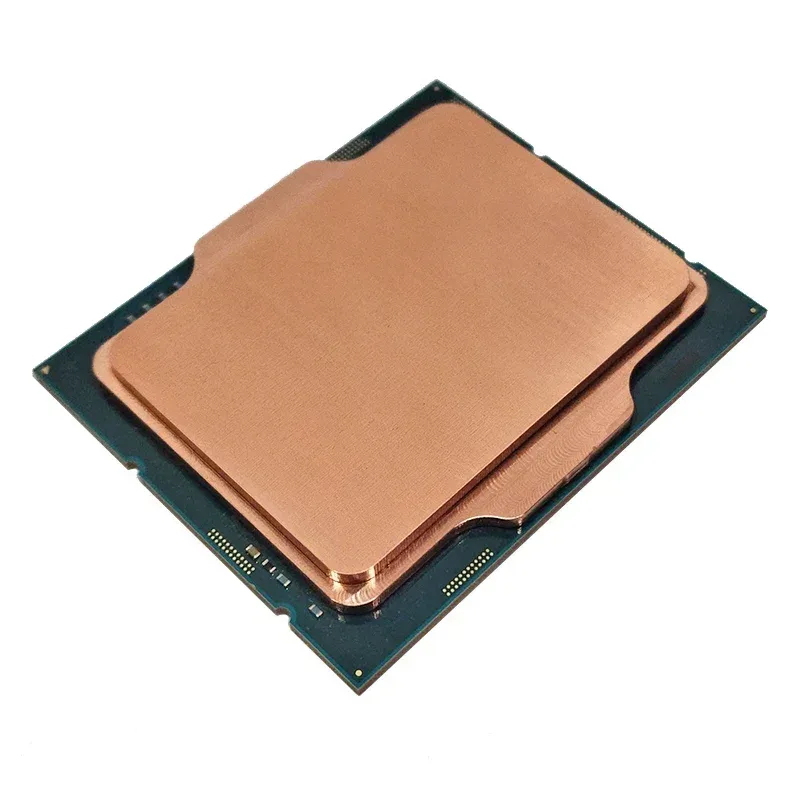

Image source: Web (Bing) / aliexpress.com (Web image (fair-use with source credit))

The phrase can also apply to the cooler base. Some builders lap the CPU lid. Others lap the cooler foot.

In most discussions, “CPU IHS lap flat” means flattening the processor lid.

Is lapping the same as polishing?

No. Polishing mainly changes appearance. Lapping changes surface geometry.

A mirror finish can still be concave or uneven.

If you are already seeing hot behavior, start with checking heat readings. That gives a baseline. It helps separate contact problems from fan, paste, or power-limit issues.

The CPU Heat Path: Die, Internal TIM, IHS, Paste, and Cooler Base

Heat moves through a stack of layers. The silicon die creates heat. It passes through internal Thermal Interface Material (TIM) into the IHS.

Then it moves through external paste into the cooler base.

Image source: Bing (Web (fair-use with source credit))

A cross-section diagram usually shows five layers:

• Silicon die
• Internal solder or paste TIM
• Copper or nickel-plated copper IHS
• External thermal paste
• Cooler base or water block

The thinnest layer is often the most important. A thick or uneven paste layer can trap heat. A thin, even layer fills microscopic gaps without blocking heat flow.

Thermal resistance is often measured in °C per watt. Lower resistance is better. Every interface adds resistance.

The goal is to keep each layer thin, clean, and evenly compressed.

Why does external TIM matter so much?

TIM fills tiny surface valleys that metal alone cannot close. Even a flat-looking surface has microscopic roughness. Paste, liquid metal, or a phase-change pad replaces air with a better conductor.

Internal TIM matters too. Many desktop CPUs use solder between die and IHS. Some designs use paste under the lid.

Solder usually transfers heat better, but it is harder to service.

Old compound should be removed carefully. This guide to wiping old compound covers the basics. Clean surfaces make paste patterns easier to read.

Manufacturer specs for high-end chips often list power limits above 200 W. Intel Core i9-14900K has a 253 W Maximum Turbo Power in Intel specifications. Official guidance from Intel treats cooler mounting and interface quality as part of thermal design.

Visual Signs the IHS and Cooler Base Are Not Sitting Flat

Uneven contact leaves evidence. The paste pattern is the easiest place to look. After removing the cooler, paste should spread in a broad, even shape.

Dry spots or one-sided smearing suggest poor contact.

A marker transfer test gives another clue. Color the IHS with a dry-erase marker or layout dye. Mount the cooler, then remove it.

The cooler wipes marker away where it touches.

If the paste pattern looks strange, cleaning the cooler base is a simple next step. Old paste and machining oil can hide the real contact pattern. Clean metal gives a clearer result.

Take photos before changing anything. Use the same angle each time. Good photos make it easier to compare paste spread, marker transfer, and scratch patterns later.

What should the contact patch look like?

A good contact patch covers the IHS center evenly. It should match the CPU heat source area. It should not leave large dry corners or a thin center.

Look for these signs:

• Paste reaches most of the IHS center
• No large dry islands
• No thick blob only on one edge
• Marker removal is even across the middle
• Cooler base shows matching transfer

Also inspect the cooler base. Machining marks are common. Shallow marks may not matter.

Deep grooves can create channels where paste fails to fill the gap.

If the cooler base has visible ridges, do not assume lapping is required. Clean it first. Remount it.

Then check the transfer pattern again.

Concave IHS, Convex Cooler Base, and High-Spot Contact Patterns

Most lapping problems start with a high spot. A high spot touches first and takes most mounting pressure. The rest of the surface can sit slightly above the cooler base.

A concave IHS dips in the center. A convex cooler base crowns in the center. When those shapes meet, center contact may be hard while outer areas barely connect.

This matters because the CPU die is usually centered under the IHS. The hottest area is often the middle. Poor center contact can raise core temperatures quickly.

Modern high-power CPUs can make this more obvious. Many AMD Ryzen chips use chiplet designs with small hot areas. If the contact patch misses those areas, temperatures can spike under load.

How can you check the shape?

Use a small machinist straightedge and bright light. Place the straightedge across the IHS. Look for light under the center or edges.

A feeler gauge can give a rough gap size.

For high-power chips, pushing a Ryzen chip can make contact problems more obvious. Higher power makes small thermal weaknesses easier to see.

Socket design can also affect pressure. Some Intel Land Grid Array (LGA) sockets use a strong center load plate. That can change how the package sits under the cooler.

It does not automatically mean the CPU is bent.

If the marker test shows even removal, stop. You probably do not need to lap the IHS. Focus on paste, mounting pressure, and cooler capacity instead.

IHS Flatness vs Polish: What Actually Improves Heat Transfer

Flatness beats shine. A uniform matte surface can transfer heat better than a mirror finish if the mirror surface is uneven. Heat transfer depends on contact area, TIM thickness, and mounting pressure.

Surface roughness is different from flatness. Roughness describes tiny peaks and valleys across a small area. Flatness describes overall shape across the whole lid.

Surface roughness is often described by an Ra value. Lower Ra means smoother microscopic texture. But a low Ra value does not prove the lid is flat.

A lapped surface may show fine, even scratches. Those scratches are not automatically bad. They can help TIM fill the surface if they are shallow and uniform.

What should you aim for?

Aim for even contact first. Aim for a clean, uniform finish second. Do not chase a mirror look unless the surface is already flat.

Lapping removes material. That is the point. It also creates a permanent change.

If you remove too much nickel plating, copper can show through.

Stop and reassess if you see these warning signs:

• Copper color showing through nickel
• Deep scratches that survive finer grits
• Rounded IHS edges
• No temperature change after careful remounting
• Paste spread still uneven after even mounting

After surface work, spreading fresh paste correctly matters as much as lapping. Too much paste can hide the contact pattern. Too little can leave gaps.

Abrasive work creates fine dust. Wet sanding and careful cleanup reduce airborne particles. For workplace dust guidance, OSHA is a useful official reference.

When Lapping the CPU IHS Can Lower Temperatures

Lapping can lower temperatures only when poor contact is the real bottleneck. If the cooler base is convex or the IHS is concave, flattening can increase contact. More contact can reduce thermal resistance.

It will not fix every hot CPU. If the cooler is too small, airflow is weak, or power limits are high, lapping may change very little. It also will not fix poor internal solder under the lid.

How much can temperatures improve?

Aggregate builder reports usually show gains around 2 to 6°C under load when contact was clearly poor. If contact was already even, the change may fall within test noise.

The best candidates show uneven marker transfer, paste spread missing the center, hot spots in a thermal camera image, or temperature spikes after remounting.

Checks to Do Before You Sand the CPU Lid

Do the cheap checks first. Lapping is permanent, so it should come after simple troubleshooting.

Start with these:

1. Remove the cooler and inspect the paste pattern.
2. Clean the IHS and cooler base with isopropyl alcohol.
3. Remount the cooler with even screw pressure.
4. Check for forgotten plastic peel on the cooler base.
5. Confirm socket retention hardware is seated correctly.
6. Verify the cooler is rated for the chip’s power.

If the paste pattern improves after a remount, you may not need abrasion. If the cooler base has deep grooves, consider lapping the cooler base before the CPU lid. The cooler is easier to replace.

Also check the motherboard and socket. Bent LGA pins, debris under the CPU, or an uneven backplate can create odd pressure. Before modifying the lid, review warranty terms.

If the CPU is new and temperatures are abnormal, a warranty claim may be safer.

If unsure, identify the exact chip first. Different models have different thermal expectations.

How to Lap a CPU IHS Flat: Preparation, Grit Progression, and Cleaning

Lapping is controlled material removal. The goal is to remove the smallest amount of metal needed for even contact.

Work with the CPU out of the socket. Place it on a clean, flat surface. Keep abrasive dust away from the motherboard and socket pins.

Basic lapping workflow

1. Clean the IHS with isopropyl alcohol.
2. Mark the lid with marker or layout dye.
3. Place fine abrasive paper on flat glass.
4. Add water or soapy water.
5. Lap using light pressure and a figure-8 pattern.
6. Rotate the CPU every few passes.
7. Check marker transfer often.
8. Move to finer grits and clean between changes.

Start around 800 or 1000 grit. Then move to 1500 and 2000 grit. Avoid coarse grits unless there is a clear defect.

Coarse paper removes nickel quickly and can leave deep scratches.

Do not lap the CPU while installed. Do not press hard. Do not let slurry reach substrate edges.

After lapping, use a careful thermal paste method before mounting the cooler.

How to Verify Contact With Marker Transfer, Straightedge, and Paste Spread Tests

Verification is where lapping succeeds or fails. You need visual proof, not just a smoother look.

For the marker test, color the whole IHS. Mount the cooler, then remove it. If the center stays marked, contact is weak there.

If one edge stays marked, pressure is tilted.

For the straightedge check, hold a small straightedge across the lid. Look for light underneath. A tiny gap may be normal.

A clear center gap suggests concavity.

The paste spread test is final proof. After a short load test, remove the cooler and photograph the paste. You want a wide, even pattern with no large dry areas.

Before-and-After Testing: Measuring Real Temperature and Boost Gains

Measure results with the same workload each time. Use a repeatable stress test and record the full run.

Keep these constant:

• Same cooler and fan curve
• Same paste amount and method
• Same room temperature
• Same stress test and duration

Use a load that matches real use. Cinebench is useful for short burst heat. Blender or HandBrake is better for sustained encoding heat.

A 10 to 15 minute run helps reach steady temperature.

Track package or core temperature, sustained clock speed, and fan speed. A real improvement usually shows lower temperature at the same fan speed. It may also show higher sustained boost.

If nothing changes after careful lapping and remounting, the bottleneck is probably elsewhere. The cooler may be undersized, power limits may be high, or internal TIM may be limiting.

IHS Lapping vs Cooler Base Lapping vs Delidding vs Direct Die

Choose the least invasive fix that matches the evidence. Cooler base lapping is usually safer because the cooler is cheaper to replace. CPU IHS lapping makes sense only when tests point to the lid.

Delidding and direct die can improve temperatures, but both greatly increase damage risk. For most builders, external contact work is the practical limit.

Risks, Warranty, Metal Dust, and Mistakes to Avoid

Lapping is permanent and may affect warranty coverage. Intel and AMD do not cover physical damage from modification. Check terms before sanding.

The biggest mistakes are coarse grit, heavy pressure, and removing too much nickel. If copper shows through, stop. Metal dust can contaminate socket pins and board components, so clean carefully.

Do not lap an installed CPU. Do not use liquid metal unless you understand electrical conductivity and aluminum compatibility. If the system is covered, a clean remount is usually safer.

Best TIM and Cooler Mounting Choices After Lapping

Use a quality non-conductive thermal paste for most builds. It is safer than liquid metal and easier to clean. A pea-sized center drop or thin spread works if the mount spreads it evenly.

Liquid metal can offer higher conductivity, but it is electrically conductive. It can damage aluminum cooler bases and short nearby components. Use it only with careful masking and experience.

Tighten cooler screws in stages. Alternate corners or sides so the base sits square. After a short heat cycle, check the paste spread before final use.

When Lapping Is Not Worth It and Safer Alternatives to Use

Skip lapping if marker transfer is even and paste spread looks normal. Temperatures are then more likely tied to power limits, airflow, or cooler capacity.

Safer alternatives include repasting, remounting, undervolting, setting lower power limits, improving airflow, or using a stronger cooler. A contact frame can help where socket pressure is a known issue.

If the CPU is under warranty, contact the manufacturer first. Lapping should be a targeted fix, not a default step.

Common Questions About CPU IHS Lapping and Flat Contact

Does lapping a CPU IHS void the warranty?

It can. Intel and AMD warranty terms generally do not cover physical damage caused by modification. If the processor is still covered, contact the manufacturer or retailer before sanding.

Repasting and remounting are safer first steps that do not alter metal.

How much material is removed when lapping?

Only a few microns of metal should be removed. The goal is to level high spots, not thin the lid. If copper shows through nickel plating, too much material is gone.

Stop and consider safer alternatives before causing permanent damage.

Should I lap the IHS or cooler base?

Lap the cooler base first if its machining marks or convex shape cause the issue. The cooler is cheaper to replace. Lap the IHS only after marker and paste tests point to the CPU lid and the warranty risk is acceptable.

Is liquid metal better after lapping?

It can transfer heat better, but it is electrically conductive and risky for most builders. Use a quality non-conductive paste unless you can mask nearby components carefully. Liquid metal also damages aluminum cooler bases.

Check compatibility before applying it first.
