Build, Troubleshoot & Protect Your PC With Precision

Objective component analysis, thermal delta benchmarks, power safety tolerances, and step-by-step diagnostic procedures for high-performance desktop systems.

Explore PC Parts Guides Troubleshooting Blog
Benchmark Telemetry HUD
STABLE
GPU Hotspot Delta
11.4°C
12V Rail Ripple
18.2 mV
DDR5 Latency
58.2 ns
Fan Acoustic Noise
28.5 dBA
Thermal paste service cycle: 24 Months
Taxonomy & Entry Points

Explore Primary Hardware Pillars

Dedicated knowledge centers covering component architecture and preventative diagnostics.

PC Parts & Components

Engineering-focused buying guides, microarchitecture evaluations, PCIe lane distribution, and component compatibility across CPUs, GPUs, motherboards, PSUs, and storage.

Processors & Sockets Graphics Cards ATX 3.1 Power Supplies DDR5 RAM Kits PCIe 5.0 NVMe SSDs
Explore PC Parts Hub →

Care & Diagnostics Blog

Systematic troubleshooting flowcharts, thermal interface repasting guides, fan curve calibration, BIOS recovery procedures, and post-assembly validation.

POST Failure Fixes Thermal Throttling Fan Curve Tuning Memory Instability (WHEA) Dust & Static Care
Read Diagnostics Blog →
Interactive Troubleshooting

Diagnostic Decision Matrix

Select your system symptom to isolate root causes and apply verified solutions.

Desktop Powers On But Shows No Display

High Priority • POST Stage

Common causes: Memory training timeout, unseated PCIe graphics connector, or outdated motherboard UEFI BIOS microcode for newer CPUs.

  • 1 Check Motherboard Debug LEDs (CPU, DRAM, VGA, BOOT) to identify the stuck initialization stage.
  • 2 Reseat memory sticks in primary dual-channel slots (typically A2 and B2) with audible dual clicks.
  • 3 Perform a complete CMOS discharge: Unplug wall power, remove CR2032 battery for 5 minutes, hold power button for 30s.
Read Detailed POST Diagnostic Guide →

Hotspot Temperature Exceeds 95°C

Medium Priority • Thermal Throttling

Delta between core and hotspot should not exceed 15–20°C. Wider deltas indicate pump-out effect, uneven cooler mounting pressure, or degraded thermal pads.

  • 1 Check mounting screw torque using an X-pattern to ensure uniform cold-plate tension across silicon.
  • 2 Inspect thermal paste viscosity; replace dried compound with high-viscosity phase-change or premium paste.
  • 3 Verify case intake fans provide positive static pressure to combat recirculation.
Read Thermal Repasting Benchmarks →

WHEA Uncorrectable Error & Memory Faults

High Priority • Silicon Stability

WHEA errors often point to unstable CPU Vcore, aggressive memory EXPO/XMP profiles, or inadequate SoC voltage on DDR5 platforms.

  • 1 Disable XMP/EXPO in BIOS temporarily to isolate memory controller voltage instability.
  • 2 Run a multi-pass MemTest86 or TestMem5 run with Anta777 configuration to pinpoint faulty DIMM modules.
  • 3 Update Motherboard BIOS to the latest stable AGESA/Microcode patch for voltage limit safety.
Read Memory Stability Guide →

High-Pitch Inductor Vibration Under High FPS

Acoustic • Non-Destructive

Coil whine is caused by electromagnetic resonance in GPU or PSU inductors under high framerates or heavy transient load switches.

  • 1 Cap global monitor refresh rates (G-Sync/FreeSync) in drivers to eliminate 500+ FPS menu spikes.
  • 2 Undervolt GPU voltage frequency curve by 50–75mV to reduce total current draw across power stages.
  • 3 Power GPU via separate individual PCIe 8-pin cables instead of daisy-chained pigtails.
Browse Quiet Power Supplies →
Benchmarked Research

Latest Deep-Dive Engineering Guides

Real-world component analyses and hardware care procedures verified on our test bench.

Thermal Optimization

Case Airflow & Pressure Balance

Maintaining slightly positive internal case pressure forces air out of unsealed chassis cracks, eliminating dust build-up while keeping VRM and GPU temps stable.

✓ Positive Pressure: Intake CFM > Exhaust CFM. Filters 90% of dust.
✓ Straight-Through Airpath: Low impedance front-to-back channel reduces vortex turbulence.
Exhaust Fan (800 RPM) Top Radiator Exhaust
[ CPU & GPU COMPONENT ZONE ]
Filter Status: Protected
Front Intake 1 (1100 RPM) Front Intake 2 (1100 RPM)
Maintenance Lifecycle

Recommended Preventative Schedule

Follow these timed maintenance intervals to maintain silence and component longevity.

Every 3 Months

Dust Filter Cleanse

  • Wash magnetic filters
  • Inspect intake fan blades
  • Check PSU bottom intake
Every 6 Months

Firmware & OS Care

  • Motherboard BIOS audit
  • GPU driver DDU cleanup
  • CrystalDiskInfo SMART check
Every 12 Months

Mechanical Deep-Check

  • Compressed air heatsinks
  • Retighten PCIe bracket
  • Check AIO liquid level noise
Every 24 Months

Thermal Interface Service

  • CPU / GPU repaste
  • Replace degraded thermal pads
  • PSU 12V rail ripple verification
Power Delivery Safety

PSU Safe Wattage Estimator

Select your core hardware to calculate recommended power supply wattage, including adequate headroom for transient spikes (ATX 3.1 standard).

Recommended Safe PSU Capacity
850W
✓ Includes 30% Transient Overhead Buffer
View Recommended Power Supplies →
Common Questions

Hardware Care & Diagnostics FAQ

Quick answers to common questions about desktop care, cleaning, and parts selection.

How often should desktop thermal paste actually be replaced? ▼
For standard modern silicone thermal pastes, repasting every 24 to 36 months is ideal. If delta temperatures between idle and sustained 100% load exceed manufacturer thresholds, or if the delta between GPU edge and junction exceeds 20°C, repasting should be performed sooner.
Can compressed air damage computer fans during dust removal? ▼
Yes. High-velocity canned air can over-spin fan bearings beyond their rated RPM and cause electric back-feed (reverse EMF) into the motherboard fan headers. Always hold the fan blades stationary with a finger or zip-tie while dusting.
What is the safest way to prevent Electrostatic Discharge (ESD)? ▼
Work on an uncarpeted hard floor, leave your power supply plugged into a grounded wall socket with the PSU switch turned OFF, and touch the bare metal chassis frame periodically to equalize potential voltage.

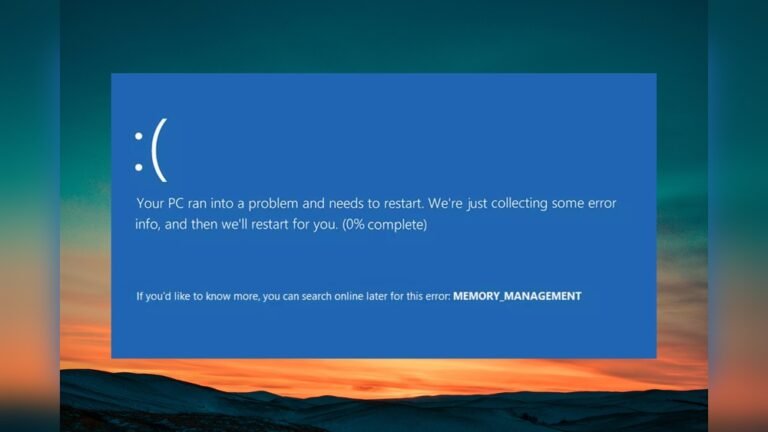

How do I know if my PC crash is caused by RAM instability? ▼
Memory instability typically presents as intermittent WHEA errors, random application crashes without BSODs, or corrupted game asset loading. Testing with tools like MemTest86 or TestMem5 is recommended.
